Dogwaffle Specific Controls

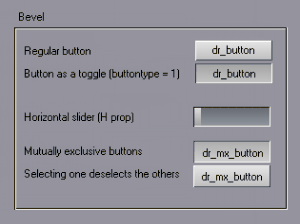

Dogwaffle has a handful of custom controls that make up the unique interface. They are:



          Bevel  box

          Button gadget

          Horizontal prop gadget

          Mutually exclusive button gadget


They are typical OCX controls that can be added to your project in Visual Basic with the Project/components menu item. Once added, they can be added to your form just like regular controls.


Bevel box lets you create a bounding box with several styles like raised, recessed, or both.


Button gadgets acts like a typical button control. Setting the Button_type property to 1 causes it to act like a toggle instead of a button. The toggle state can be read with the Value property.


Prop gadgets are horizontal sliders. You can set the min, max, and value parameters just like a slider or scrollbar.


Mutually exclusive buttons act like regular toggle buttons, except when you select one, all other mx_buttons on a form are de-selected.


When working with the barebones project, there are several tags you can set to control the look of these controls, based on user settings. The barebones project contains a function called PrefsCallback that is called when a form is loaded. If you add a form, you should consider adding a call to PrefsCallback in the forms load event.

Adding one of 3 strings to a controls Tag property will give a different shading than the regular button ‘backfill’ color. They are "Setting", "Action", and "Tool".








Visual Styles


It is possible to read all of Project Dogwaffle’s visual style settings from the registry. Preset values are given, in case a user has never saved any preferences.



Dim MYBackColor As Long

Dim MyTextBackColor As Long, MyTextForeColor As Long

Dim MyComboBackColor As Long, MyComboForeColor As Long

Dim MyShineColor As Long, MyShadowColor As Long

Dim MyHalfShineColor As Long, MyHalfShadowColor As Long

Dim MyButtonFillColor As Long, MyScrollFillColor As Long

Dim MyScrollbarColor As Long

Dim MySpecialBackdropColor As Long

Dim MySpecialSettingColor As Long, MySpecialActionColor As Long

Dim MySpecialToolColor As Long

Dim MyBorderlessButtons As Long

Dim MyBorderlessScrollers As Long

Dim MyBorderlessStrings As Long

Dim MyBorderlessTabs As Long

Dim MyTabHilightColor As Long

Dim MyRulerColor As Long

Dim MyTextboxFillColor As Long

Dim MyTextboxTextColor As Long


Dim MyApp As String, MySection As String

MyApp = "dogwaffle": MySection = "Startup"


' interface colors

MYBackColor = &H9E958F

MyShineColor = GetSetting(MyApp, MySection, "Shine_Color", &HE0E0E0)

MyShadowColor = GetSetting(MyApp, MySection, "Shadow_Color", &H202020)

MyHalfShineColor = GetSetting(MyApp, MySection, "Half_Shine_Color", &HC0C0C0)

MyHalfShadowColor = GetSetting(MyApp, MySection, "Half_Shadow_Color", &H707070)

MyButtonFillColor = GetSetting(MyApp, MySection, "Button_Fill_Color", &HC0C0C0)

MyScrollFillColor = GetSetting(MyApp, MySection, "Scroll_Fill_Color", &H9E958F)

MyScrollbarColor = GetSetting(MyApp, MySection, "Scroll_Bar_Color", &HFFFFFF)

MyTabHilightColor = GetSetting(MyApp, MySection, "Tab_Highlight_Color", &HD0F4FF)

MyRulerColor = GetSetting(MyApp, MySection, "Ruler_Color", &HB8E8FA)

MyTextboxFillColor = GetSetting(MyApp, MySection, "Textbox_Fill_Color", &H665555)

MyTextboxTextColor = GetSetting(MyApp, MySection, "Textbox_Text_Color", &H88EEFF)

MySpecialBackdropColor = GetSetting(MyApp, MySection, "Special_Backdrop_Color", &H9E958F)

MySpecialToolColor = GetSetting(MyApp, MySection, "Special_Tool_Color", &HC1BEC9)

MySpecialSettingColor = GetSetting(MyApp, MySection, "Special_Setting_Color", &HC5C5B6)

MySpecialActionColor = GetSetting(MyApp, MySection, "Special_Action_Color", &HB5BFBD)

'borderless stuff

MyBorderlessButtons = GetSetting(MyApp, MySection, "Borderless_Buttons", 0)

MyBorderlessScrollers = GetSetting(MyApp, MySection, "Borderless_Scrollers", 0)

MyBorderlessStrings = GetSetting(MyApp, MySection, "Borderless_Strings", 0)

MyBorderlessTabs = GetSetting(MyApp, MySection, "Borderless_Tabs", 0)


MyTextBackColor = MyTextboxFillColor

MyTextForeColor = MyTextboxTextColor

MyComboBackColor = MyTextboxFillColor

MyComboForeColor = MyTextboxTextColor





Wallpaper


It is also possible to get the image of the current ‘wallpaper’ texture used in forms.

For example, you could use this routine on startup to read the pattern into an image control.


On Error GoTo done

Wallpaper = Dogwaffle.Dog_WallpaperFilename

Image1.Picture = LoadPicture(Wallpaper)

done:

On Error GoTo 0


And you could use this subroutine to display it on a form. Make sure you have an image control on the form, and the forms scale mode is set to pixel.


Public Sub Draw_Pattern(ByRef ThisObject)


'draws dogwaffles tiled pattern into a form or picturebox

Dim X As Long, Y As Long

Dim pw As Long, ph As Long

Dim dw As Long, dh As Long


On Error GoTo Skip


'if use patter then...


pw = Image1.Width

ph = Image1.Height


dw = ThisObject.ScaleWidth

dh = ThisObject.ScaleHeight


For Y = 0 To (dh) Step ph

For X = 0 To (dw) Step pw


If ThisObject.Visible = True Then

ThisObject.PaintPicture Image1.Picture, X, Y

End If


Next

Next



Skip:

On Error GoTo 0



'end if

End Sub
