DogLua - Lua scripting for Project Dogwaffle:

the DuoTone Filter

back

 DogLua:   Overview - Downloading - Reference Guide - Sample Scripts - Lua Browser
  see also:  GUI Server - more SDK Info


the Duo Tone Filter.......

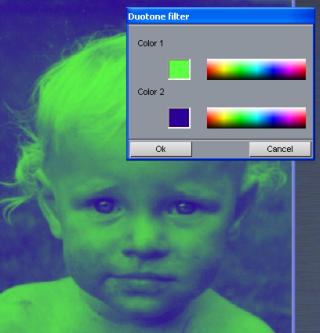

This filter uses the GUIserver functions to display two color boxes. You can select a color from either color boxes. When you're done the filter immediately goes to work. Click OK to keep the final result or Cancel to return to the image before entering the plugin.






This filter can also be used to simulate Sepia mode.







--Duotone.lua

function DoDuo (gr1,gr2)
local r,g,b,r2,g2,b2,r3,g3,b3
local x,y, y2,y3,av,av2

--basically map the image to a gradient created from the 2 colors.

r2,g2,b2 = decimal2rgb(gr1)
r3,g3,b3 = decimal2rgb(gr2)

for y = 0, height - 1 do
  for x = 0, width - 1 do
    r, g, b = get_rgb(x, y)

     av=(r+g+b)/3
     av2=1-av

     r=(r2*av)+(r3*av2)
     g=(g2*av)+(g3*av2)
     b=(b2*av)+(b3*av2)

    set_rgb(x, y, r, g, b)
  end
  progress(y2)
end
progress(0) -- reset the progress bar after usage.
Dog_Refresh()
end



-----------------------------------------------------------------
-- The main part of the program (GUI)
-----------------------------------------------------------------

-- in case we 'Cancel',...
Dog_SaveUndo()

GUI_SetCaption("Duotone filter")

-- create two colorboxes
dummy = GUI_AddControl("TextLabel", "Color 1")
h1 = GUI_AddControl("Colorbox", "", hex("44AAFF"), 0, 0)
dummy = GUI_AddControl("TextLabel", "Color 2")
h2 = GUI_AddControl("Colorbox", "", hex("224455") ,0, 0)

GUI_OpenPanel()

-- this is our main event loop.
-------------------------

repeat
  idx, retval, retstr = GUI_WaitOnEvent()

   g1,dummy=GUI_GetSettings(h1)
   g2,dummy=GUI_GetSettings(h2)

   if idx >=0 then
     DoDuo(g1,g2)
   end

until idx < 0

-- end of main loop -------
------------------------------

-- if we pressed 'Cancel' restore original and show it
if idx == -2 then
  Dog_RestoreUndo()
  Dog_GetBuffer()
  Dog_Refresh()
end

GUI_ClosePanel()
