Lesson 1 (part3)

Selecting a simple image shape to
create a custom brush from it


part 1    part 2     - part 3 -


more:
take me back


Bryce 5.5
BOXED!

Original price: $89.95
padSale price around $25








Managing the custom brush:  Store brush

Now that the selection is in the custom brush, you may want to store this brush, for future use in different sizes, angles, colors and shades.

menu:  Brush > Store / manage...







Fast 3D sketching, colormap, bumpmap and displacement map painting and digital & sculpting:
Curvy 3D
the fun & intuitive way to sculpt!

...it's not modeling, it's better:
It's liberal sculpting!
Great for Fantasy Art, Concept Art & 3D Design, making 3D props, ...


Special discount coupons available for users of Project Dogwaffle! (ask us)

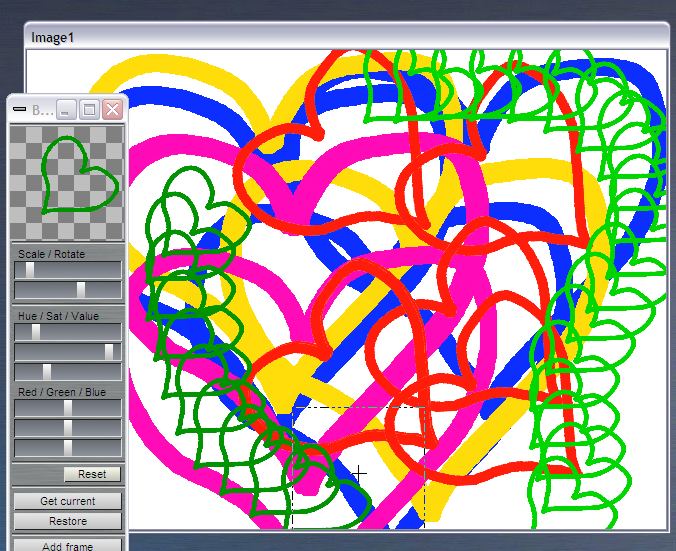

The floating window that contains the stored brush can be resized if needed. You'll notice that by default, the selection mask was used to make the selected pixels opaque (visible) while the remaining pixels turned transparent.

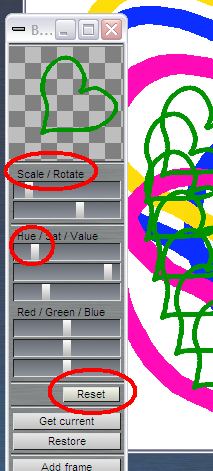

You can now use the Scale/Rotate controls, and various others such as Hue, to change the appearance of the image in your brush.

You can thus quickly also get to smaller hearts, purple, yellow and other colors....




Other things to try with the custom brush:


Click the brush image icon (that's not the brush tool, but the brush image). It will show you the brush settings, also known as brush options. Keyboard shortcut: 'o' for options




In the brush settings anel, select the Custom tab. That will show options which are only for Custom brushes.

The checkbox "Allow custom brush transforms" is originally unchecked.

Be sure to check it, if you want the size and angle of this custom brush image to be controllable by things such as tablet pen pressure, mouse speed or random angle.



Affordable
2D + 3D Software
Animation Tools
at lowest prices!
Poser - Anime Studio -  Carrara - Manga Studio - Bryce and much more
from Purplus

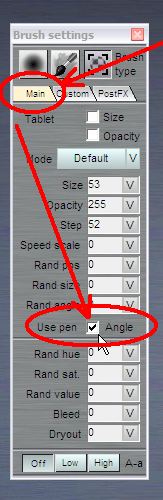

After enabling (checking) the custom brush transform, switch back to the Main tab which shows general options.

Adjust values such as Size, Opacity, Step and more. Notice that the Random position always takes effect even before checking the "Allow custom brush transforms" option as shown above. The position is a simple offset, doesn't take much time to apply to the brush no matter how big the custom or internal brush image is. However, doing a rotation or a change in size does require significant amounts of calculations, so Dogwaffle makes it an option you have to request. This the prior exercise above.

You can now for example check the box "Use pen" to have the program to calculate the angle dynamically and on-the-fly while you draw, and based on the path that the pen takes. The heart will thus 'line up' with your drawing path.


Finally! 3D for everyone:
around $17
Carrara
3D Basics:
so affordable!
Carrara 3D Basics 2 on sale

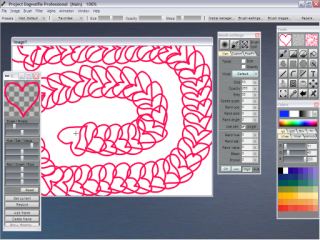

For example, if you draw in a spiral, the hearts will ook liekt his here.


<< Click to enlarge


If you uncheck the 'Use Pen' option, the heart will keep the same orientation, i.e. there's no rotation based on path.

Other things like random Hue are not affected.

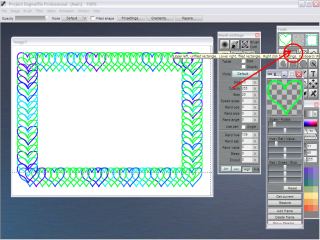

Here's an example using the Rectangle tool, in which the custom brush is drawn along the rectangular outline.



That's it for this short lesson. Come back for more.
